Waterproofing PTFE Coated Fiberglass Membrane
  • Waterproofing PTFE Coated Fiberglass Membrane
  • Waterproofing PTFE Coated Fiberglass Membrane
  • Waterproofing PTFE Coated Fiberglass Membrane
  • Waterproofing PTFE Coated Fiberglass Membrane
  • Waterproofing PTFE Coated Fiberglass Membrane
  • Waterproofing PTFE Coated Fiberglass Membrane

Waterproofing PTFE Coated Fiberglass Membrane

What is PTFE architectural membrane?

➢PTFE architectural membrane material is mainly composed of PTFE(polytetrafluoroethylene) material and high-strength glass cloth, which is

made into architectural membrane material after drying, baking and sintering.

➢PTFE architectural membrane material is a novel building material with hightechnology.

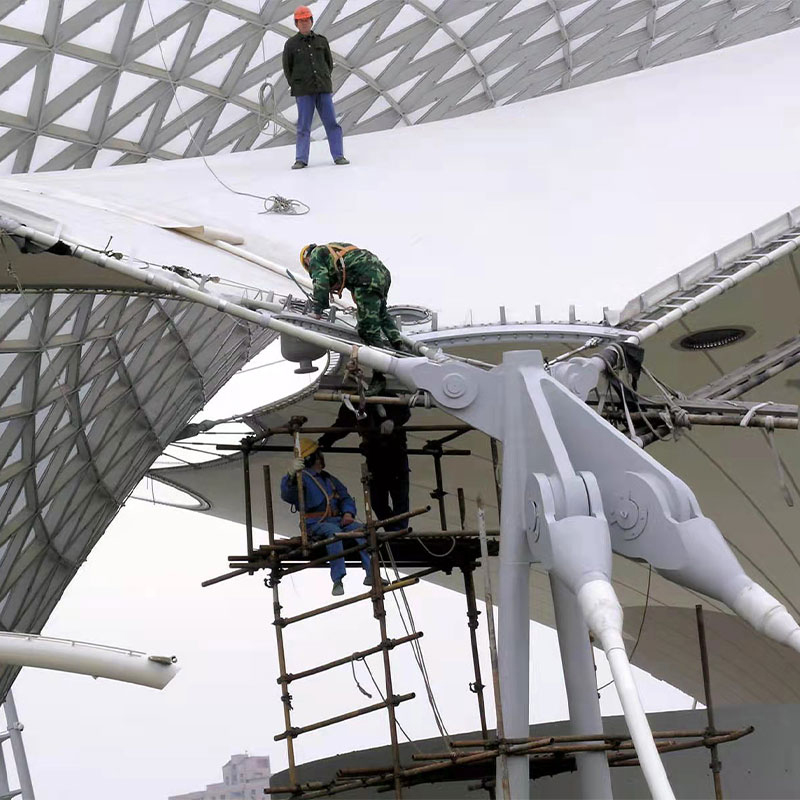

➢The membrane structure is an ideal the architectural form with vitality, which has lightweight, large span, good durability, fire resistance, light

transmittanceand self-cleaning and short construction period.

Contact now

PRODUCT DESCRIPTION

Project

DFS-5500

DFS-6500

DFS-7500

DFS-9000

DFS-10000
Fabric

EC3/EC6

EC3/EC6

EC3/EC6

EC3/EC6

EC3/EC6

Coating

Multi-layer PTFE coating

Multi-layer PTFE coating

Multi-layer PTFE coating

Multi-layer PTFE coating

Multi-layer PTFE coating

Weight （g/m2）

1000

1150

1450

1600

1800

Width （cm）

300~380

300~380

300~380

300~380

300~380

Tensile strength (N/5cm)(Warp/weft )

5800/5500

6500/6300

7500/7300

9000/8500

11000/10000

Tear strength (N/5cm)(Warp/weft )

380/370

470/460

520/510

500/520

650/670

Warranty （year ）

25

25

25

25

25



Product description:

Waterproofing PTFE Coated Fiberglass Membrane (waterproof PTFE-coated fiberglass membrane) is a material with excellent waterproof properties and is widely used in construction, chemical industry, electronics, medical and other fields. The features, applications and advantages of this product will be introduced in detail below.
1. Product features
Excellent waterproof performance: The PTFE (polytetrafluoroethylene) coating gives the fiberglass membrane extremely strong waterproof capabilities, allowing it to maintain stable performance in humid or watery environments and effectively prevent moisture penetration.
Good chemical stability: The PTFE coating makes the glass fiber membrane have excellent chemical corrosion resistance and can resist the erosion of various acids, alkalis, organic solvents and other chemical substances, ensuring the stability of the material for long-term use.
High strength and durability: As a base material, glass fiber has high strength and excellent durability, and can withstand certain tensile and compressive forces, ensuring that the membrane is not easily damaged or deformed during use.
Easy to process and install: This kind of membrane material can be cut, stitched and processed according to actual needs, which is convenient for construction and installation and adapts to various complex engineering structures.
2. Application fields
Construction field: As a waterproof material for roofs, walls and other parts, it can effectively prevent rainwater leakage and improve the waterproof performance of buildings.
Chemical industry: used to make various chemical equipment, pipelines, etc. that require high corrosion resistance and waterproof performance to ensure stable operation of equipment in harsh environments.
Electronic field: As a waterproof and moisture-proof material for electronic products, it protects electronic components from moisture erosion and improves the reliability and service life of the product.
Medical field: Used to make waterproof and anti-fouling covers for medical equipment to ensure that the equipment operates in a clean and sterile environment and reduce the risk of infection.
3. Advantage analysis
High cost performance: Compared with other waterproof materials, Waterproofing PTFE Coated Fiberglass Membrane has a high cost performance, which can not only meet the waterproof performance requirements, but also reduce engineering costs.
Environmental protection and energy saving: This material does not pollute the environment during production and use, and meets environmental protection requirements. At the same time, its excellent waterproof performance helps reduce building maintenance costs and achieve energy saving and consumption reduction.
Wide scope of application: Due to its good chemical stability and physical properties, this membrane material can adapt to a variety of harsh environments and meet the needs of different fields.
Waterproofing PTFE Coated Fiberglass Membrane is a waterproof material with excellent performance and wide application. It has broad market prospects in construction, chemical industry, electronics, medical and other fields.
